Vertical Pilates Reformer for Home use

Sale price $1,990.00
Pay Over Time
Available to order
Model / SKU
Best Price GuaranteeShop with price protection.
Free Nationwide ShippingComplimentary delivery on eligible orders.
Expert Product SupportGet help confirming fit and configuration.

No sales tax outside Florida · Manufacturer warranty included

Verified data

Specifications

Brand
Elina Pilates®

Every row above is published in our Shopify product data for the selected variant. Dimensions, cut-out sizes and electrical or gas requirements vary by model; confirm them against the manufacturer documents below before framing, wiring or plumbing.

Product detail

About this studio equipment

Description

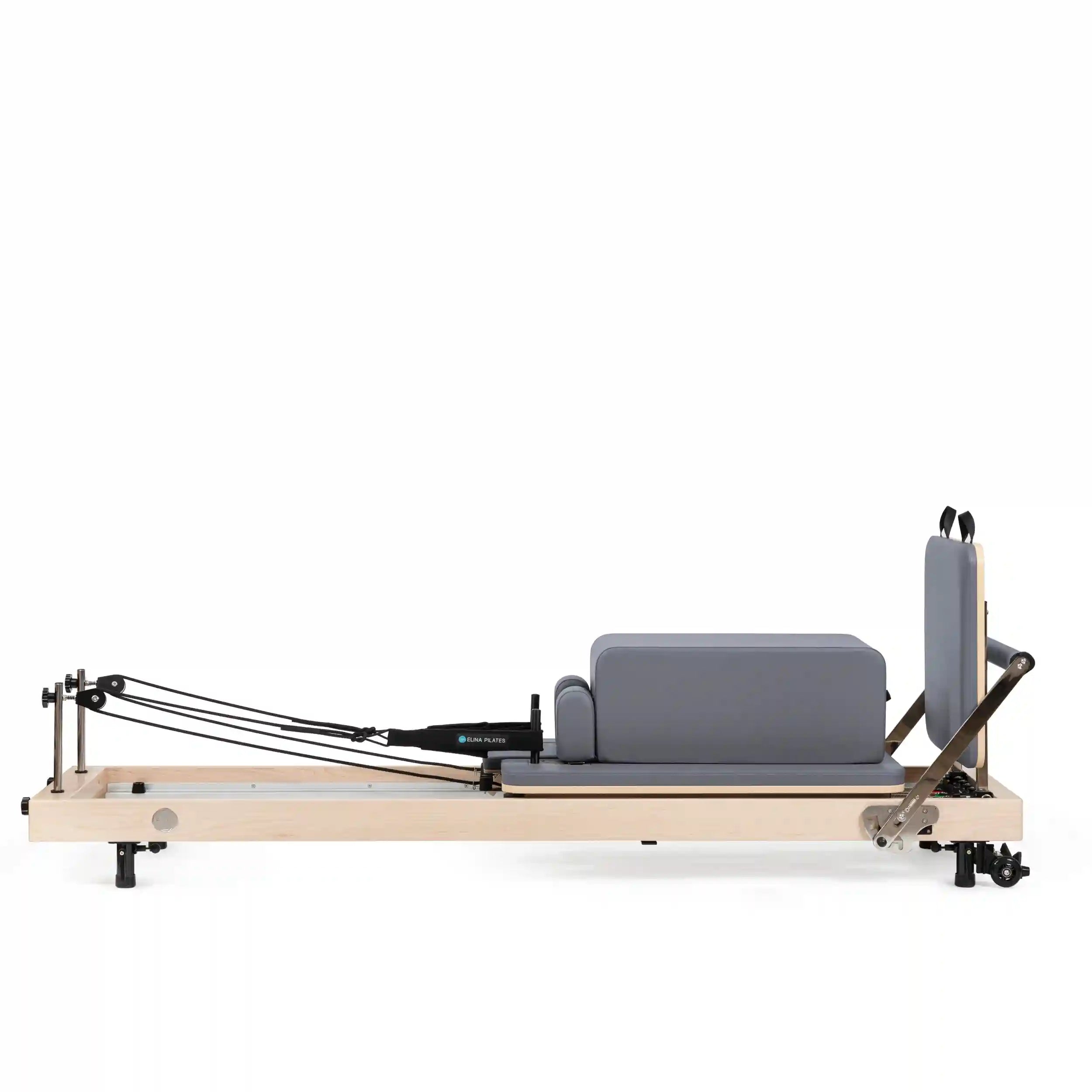

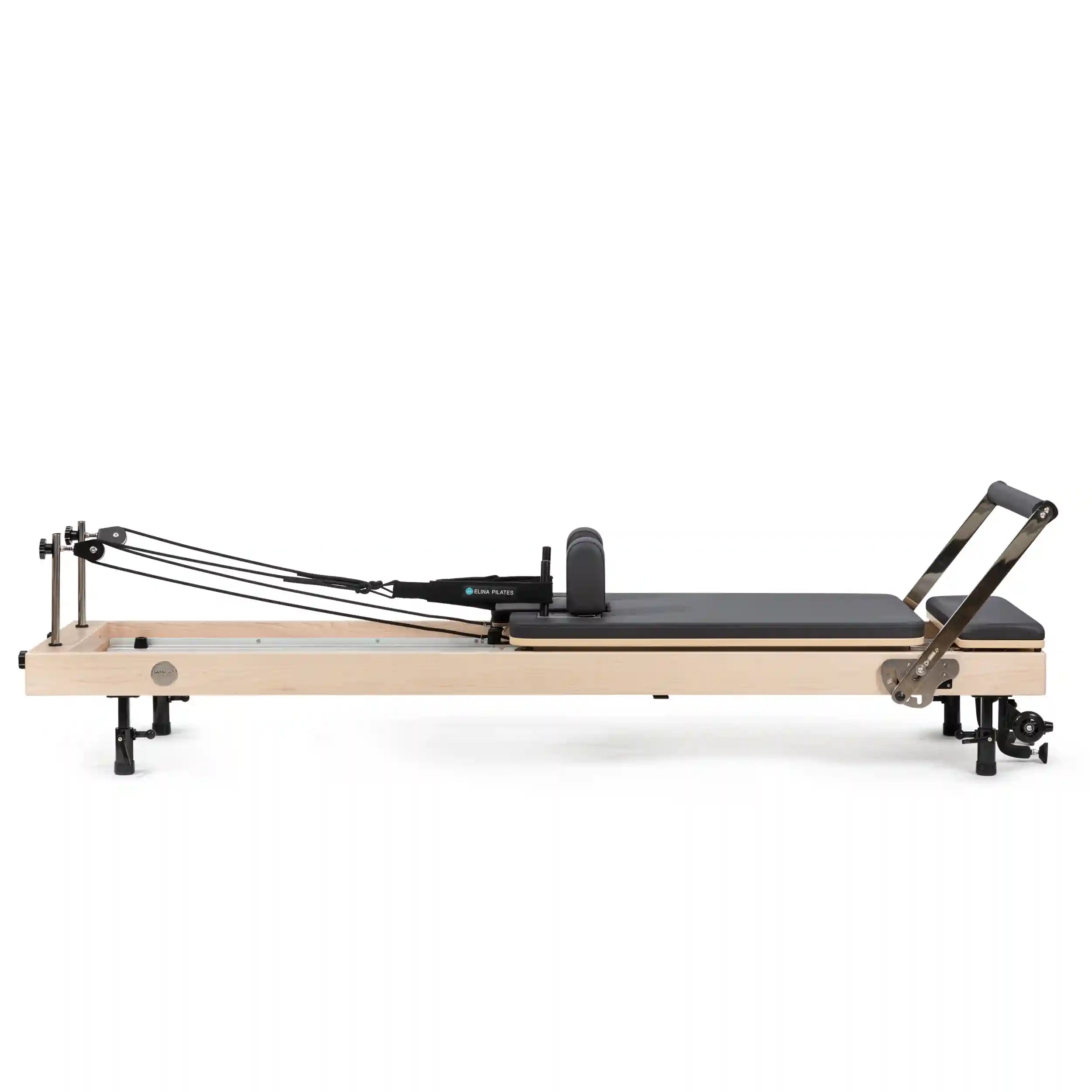

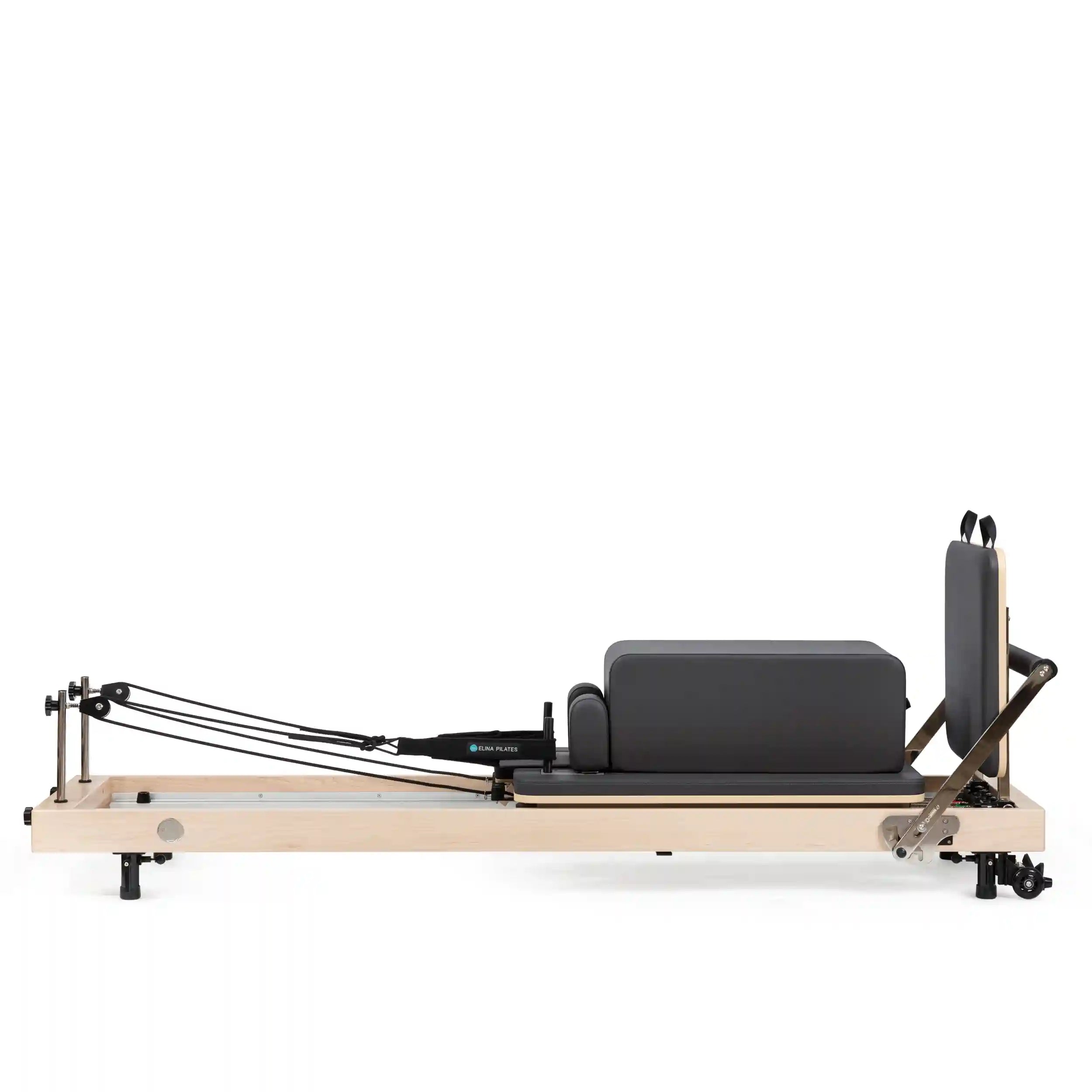

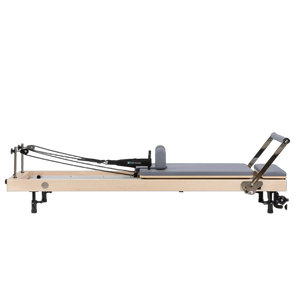

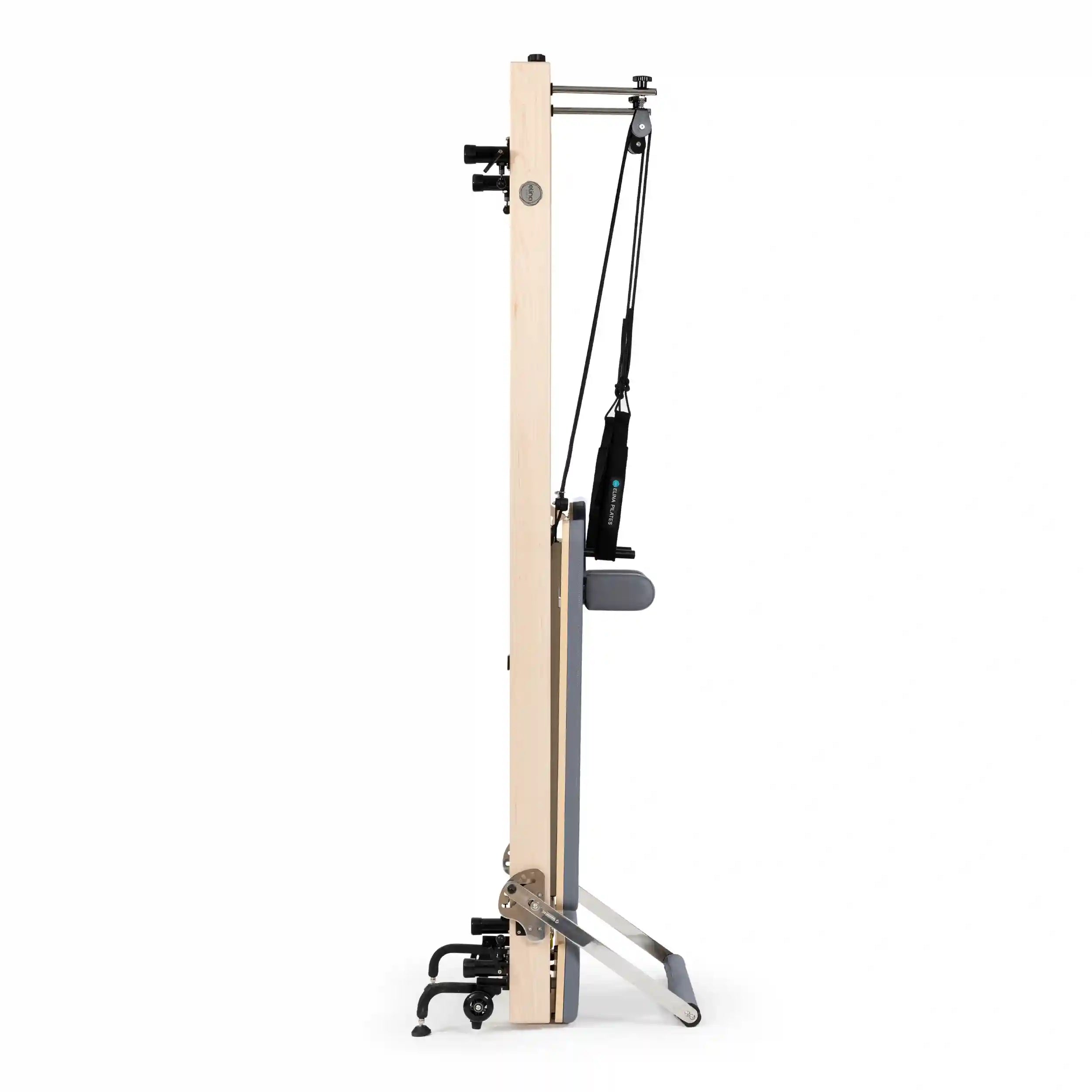

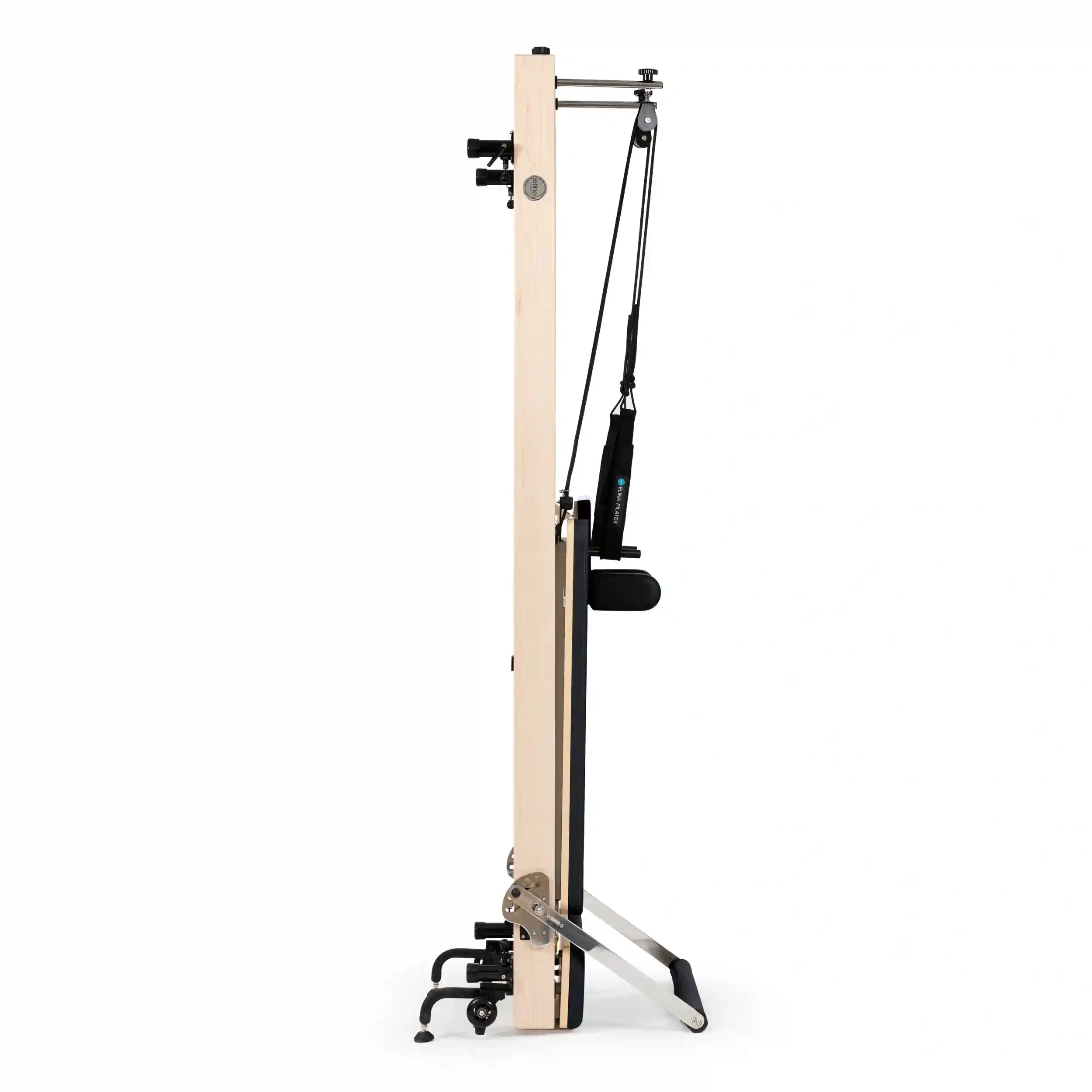

The Vertical Pilates Reformer is Elina Pilates' home machine for floors that need to clear between sessions. After practice, the 92.52" (235 cm) American maple reformer tips upright onto two removable safety legs that hold it stable against a wall, occupying its 24.02" (61 cm) width of floor instead of its full length. Two transport wheels move it, and adjustable legs set the bed at 11.02" or 13.98" (28 or 35.5 cm) from the floor.

In use it gives up nothing to a fixed home reformer: five high-precision alloy springs, a six-position quick-release foot bar, 74.80" (190 cm) of maximum carriage travel and a 330.7 lb (150 kg) user capacity, with the same quiet carriage running gear as Elina's studio machines. Check ceiling height before ordering: stored upright, the machine stands close to its 92.52" length. Studios running continuous classes should look at Elina's fixed-frame range instead.

Features

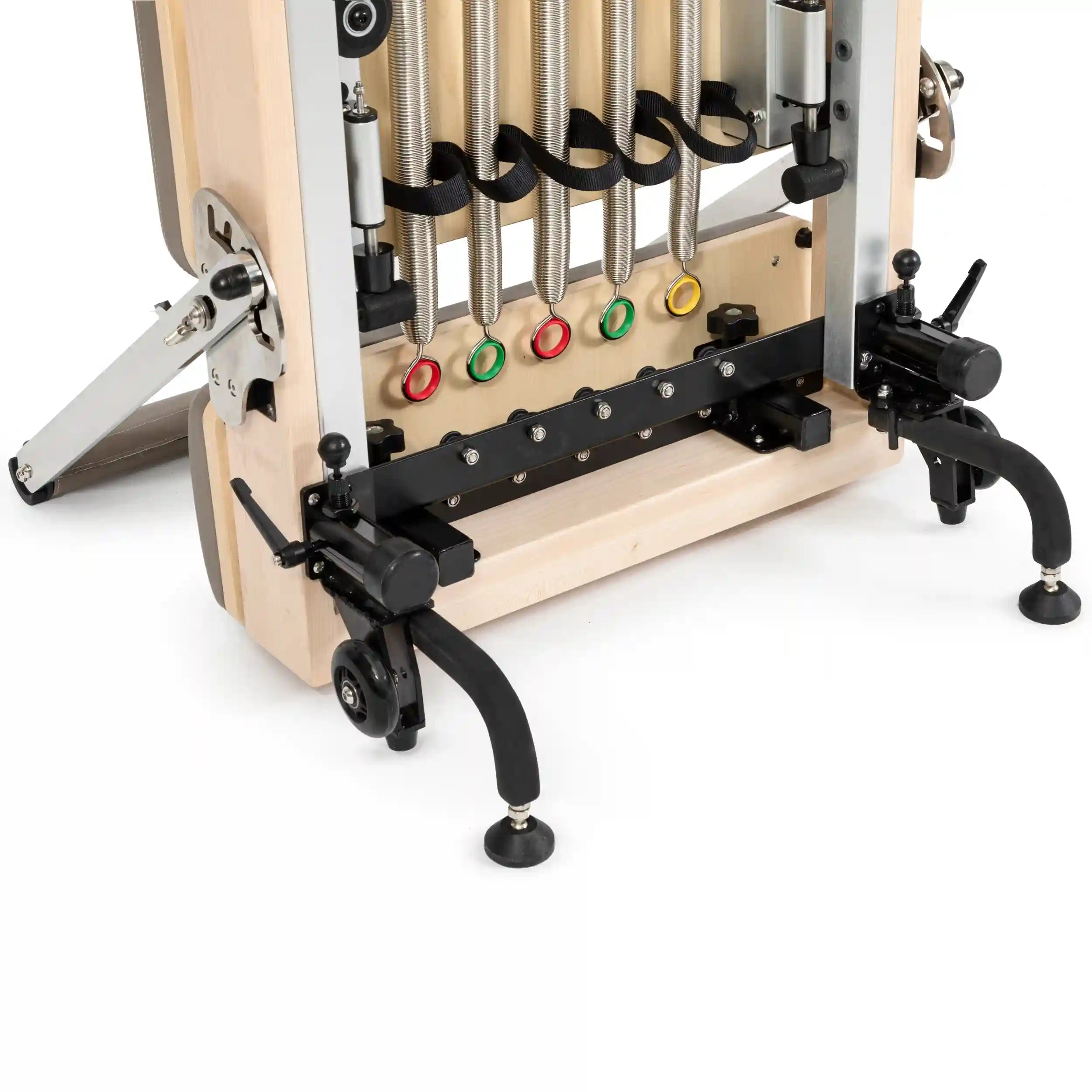

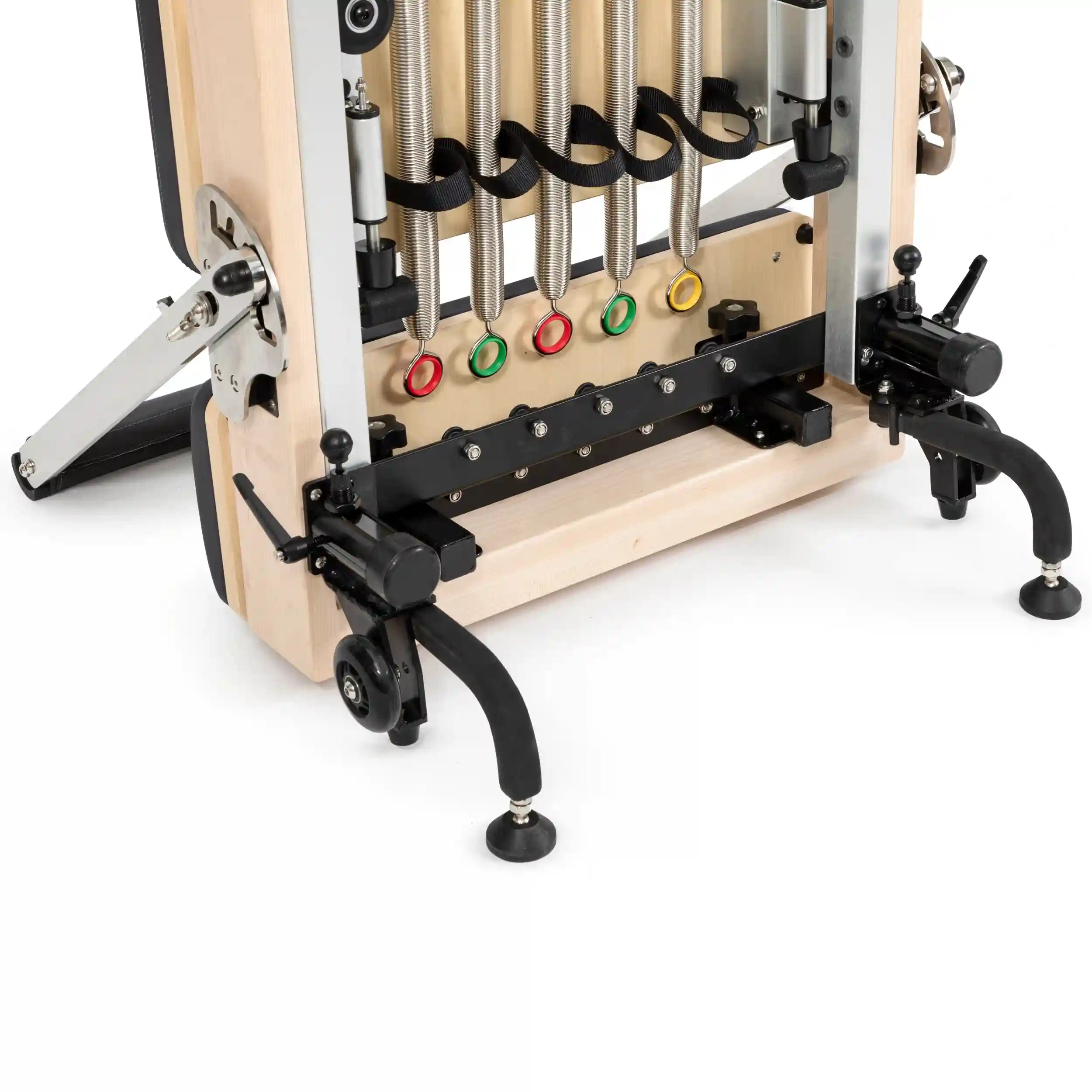

  • Stores vertically on two removable safety legs that give a stable, firm base against the wall
  • Frame in light-toned American maple with waterproof varnish
  • Quick-release foot bar with six adjustable positions, padded against slipping
  • Ultra-quiet carriage with eight polyurethane wheels and high-precision bearings
  • Five high-precision alloy springs in three resistance levels
  • Bed cushioning mechanism damps end-of-stroke noise and impact
  • Retractable automatic cord storage under the carriage
  • Headrest adjustable in three positions; adjustable padded shoulder rests
  • Four adjustable legs with two bed heights: 11.02" or 13.98" (28 or 35.5 cm)
  • Two wheels for transport
  • Upholstery in nine standard colors, with 100+ custom colors on request

What's included

  • Vertical Reformer for home: structure + carriage
  • Five high-precision springs in three resistance levels: 2 green (low resistance), 1 yellow (medium intensity), 2 red (high intensity)
  • Extra-wide padded box, placeable parallel or perpendicular to the reformer
  • Padded shoulder rests, easy to insert and remove
  • Sturdy, wide jump board
  • Padded foot platform
  • One set of hand straps and one set of double-loop hand and foot straps
  • One set of ropes
  • Anti-slip mat
  • Retractable automatic cord storage system
  • 2 wheels for transporting the Vertical Reformer
  • 4 adjustable legs with 2 height options
  • 2 safety legs to keep the reformer in a vertical position

Dimensions

In use: 92.52" L × 24.02" W (235 × 61 cm), structure height 11.02" (28 cm) with folded legs or 13.98" (35.5 cm) extended. Bed: 39.76" (101 cm) total length, 29.53" (75 cm) under the shoulder rests, 14.17" (36 cm) high. Maximum carriage travel 74.80" (190 cm). Machine weight 136.7 lb (62 kg) without accessories; supports users up to 330.7 lb (150 kg). Jump board: 22.44" × 23.03" (57 × 58.5 cm). Stored vertically, allow ceiling clearance close to the machine's 92.52" (235 cm) length.
