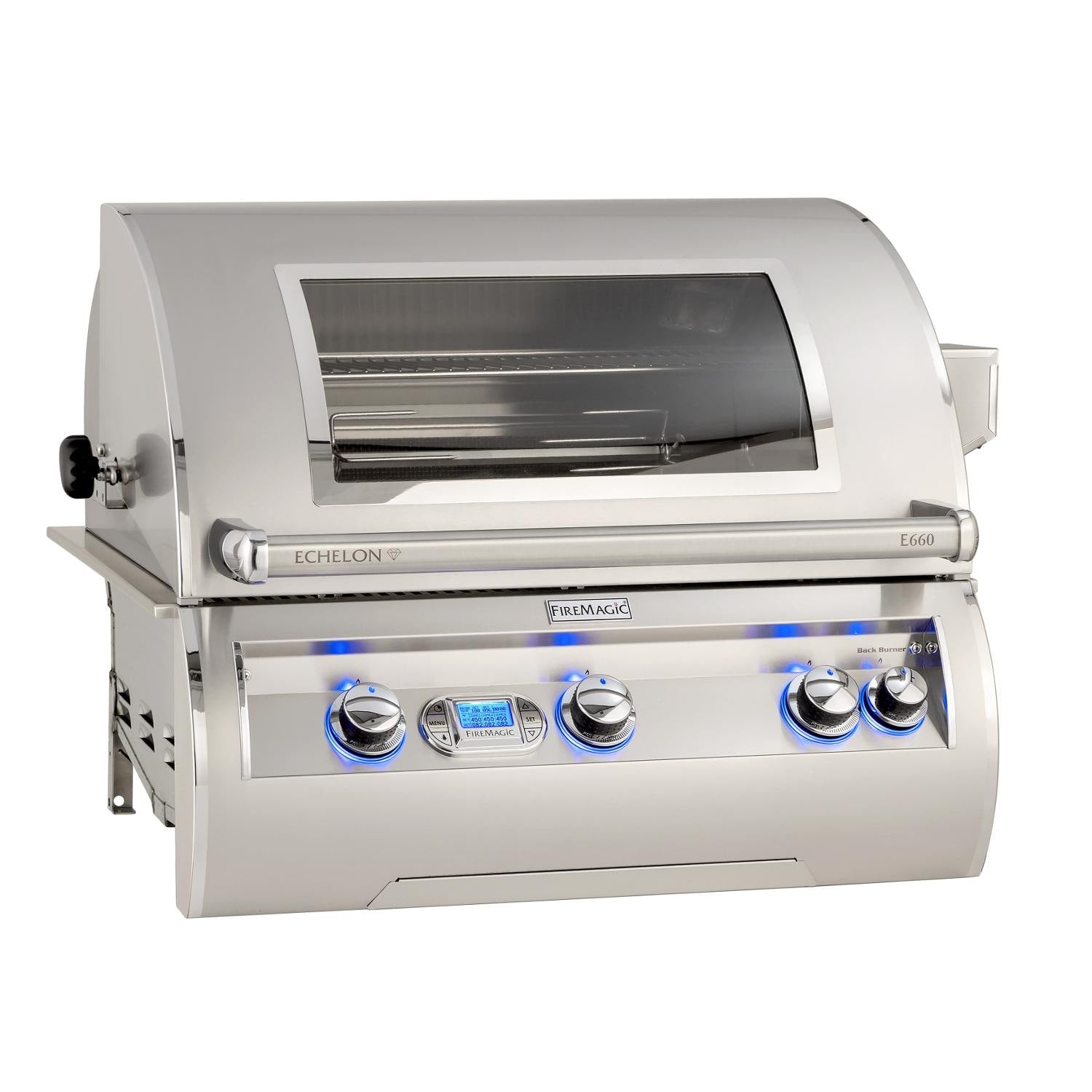

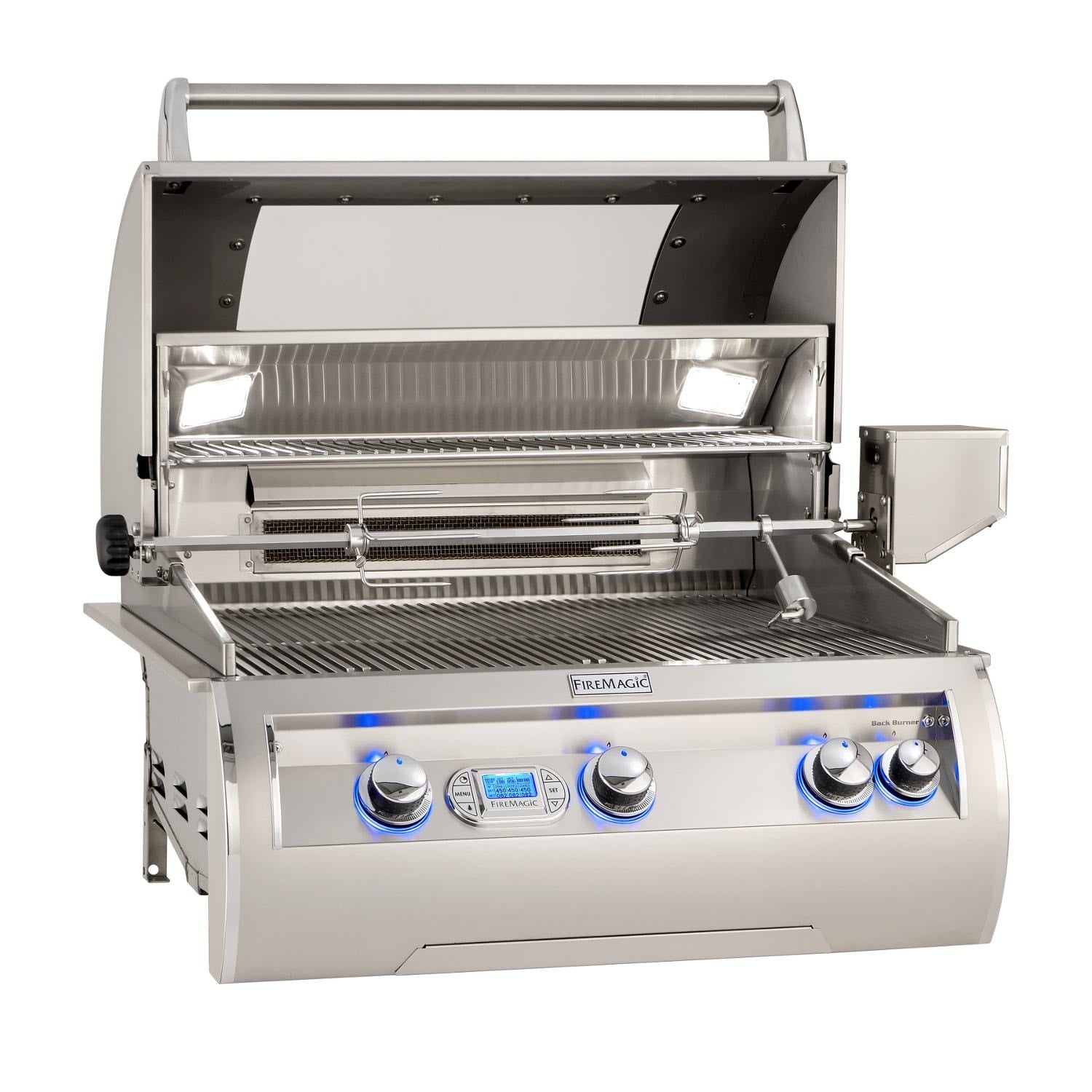

Home Fire Magic Echelon Diamond 30-Inch Built-In Propane Gas Grill with One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W)
Fire Magic Echelon Diamond 30-Inch Built-In Propane Gas Grill with One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W).
Fire Magic Echelon Diamond 30-Inch Built-In Propane Gas Grill with One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W).
Fire Magic Echelon Diamond 30-Inch Built-In Propane Gas Grill with One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W).
Fire Magic Echelon Diamond 30-Inch Built-In Propane Gas Grill with One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W).
Fire Magic Echelon Diamond 30-Inch Built-In Propane Gas Grill with One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W).
Fire Magic Echelon Diamond 30-Inch Built-In Propane Gas Grill with One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W).
Fire Magic Echelon Diamond 30-Inch Built-In Propane Gas Grill with One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W).
1 / 7
Fire Magic Echelon Diamond 30-Inch Built-In Propane Gas Grill with One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W).
Fire Magic Echelon Diamond 30-Inch Built-In Propane Gas Grill with One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W).
Fire Magic Echelon Diamond 30-Inch Built-In Propane Gas Grill with One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W).
Fire Magic Echelon Diamond 30-Inch Built-In Propane Gas Grill with One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W).
Fire Magic Echelon Diamond 30-Inch Built-In Propane Gas Grill with One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W).
Fire Magic Echelon Diamond 30-Inch Built-In Propane Gas Grill with One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W).
Fire Magic Echelon Diamond 30-Inch Built-In Propane Gas Grill with One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W).
Vendor: Fire Magic

Fire Magic Echelon Diamond 30-Inch Built-In Propane Gas Grill with One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W)

Regular price $9,651.00 Sale price $8,685.90
Pay Over Time
Available to order
Model / SKU E660I-8L1P-W
Best Price GuaranteeShop with price protection.
Free Nationwide ShippingComplimentary delivery on eligible orders.
Expert Product SupportGet help confirming fit and configuration.

No sales tax outside Florida · Manufacturer warranty included

Verified data

Specifications

Brand
Fire Magic
Product type
BBQ GRILL
SKU
E660I-8L1P-W
Fuel type
Gas

Every row above is published in our Shopify product data for the selected variant. Dimensions, cut-out sizes and electrical or gas requirements vary by model; confirm them against the manufacturer documents below before framing, wiring or plumbing.

Product detail

About this grill

Fire Magic Echelon Diamond 30" Built-In Propane Gas Grill w/ One Infrared Burner, Magic View Window, Rotisserie, & Digital Thermometer (E660I-8L1P-W)

The Fire Magic Echelon Diamond Series combines the ultimate in performance, beauty, and innovation, featuring a hot surface ignition, blue back-lit knobs, heat zone separators, and infrared sear burner options.

Features:

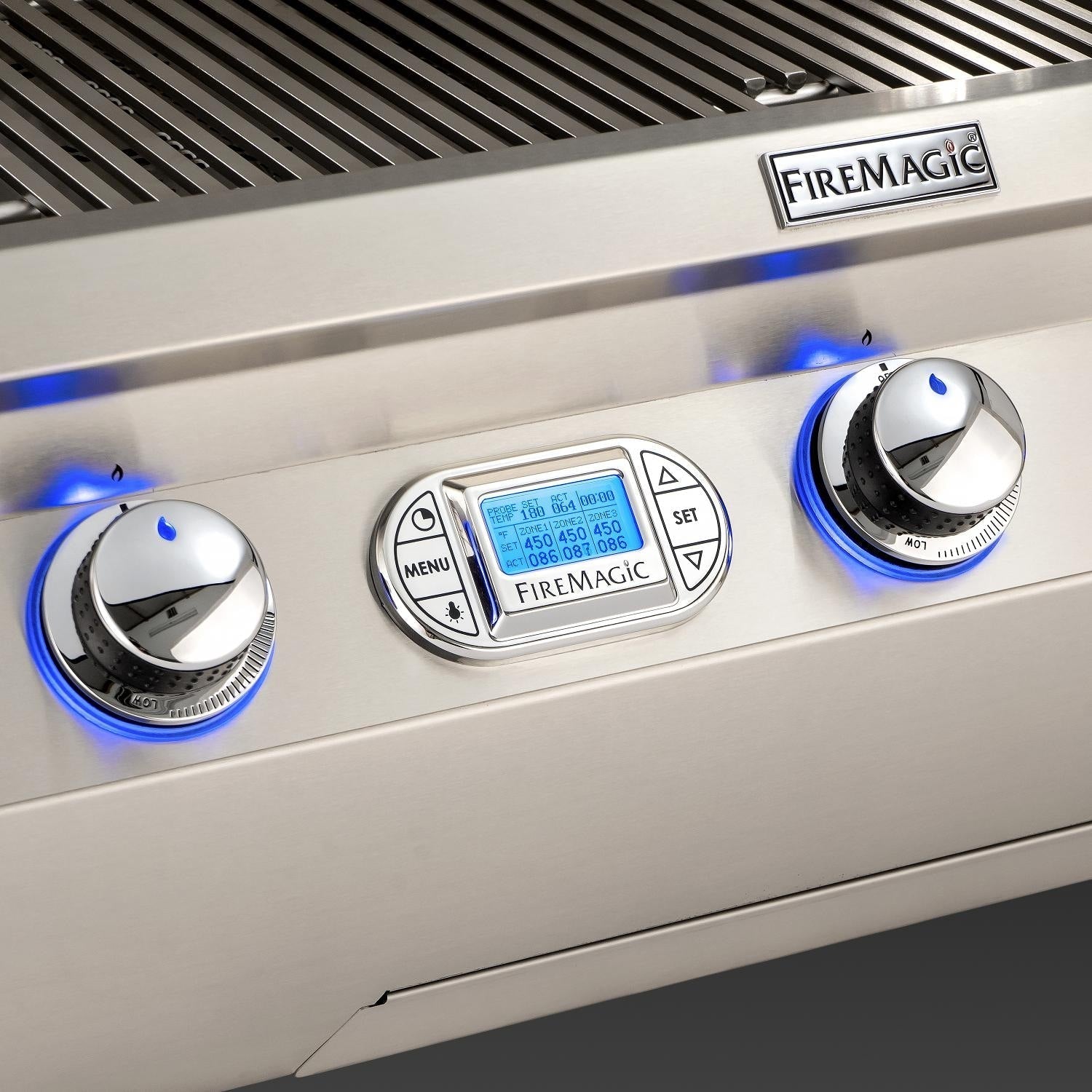

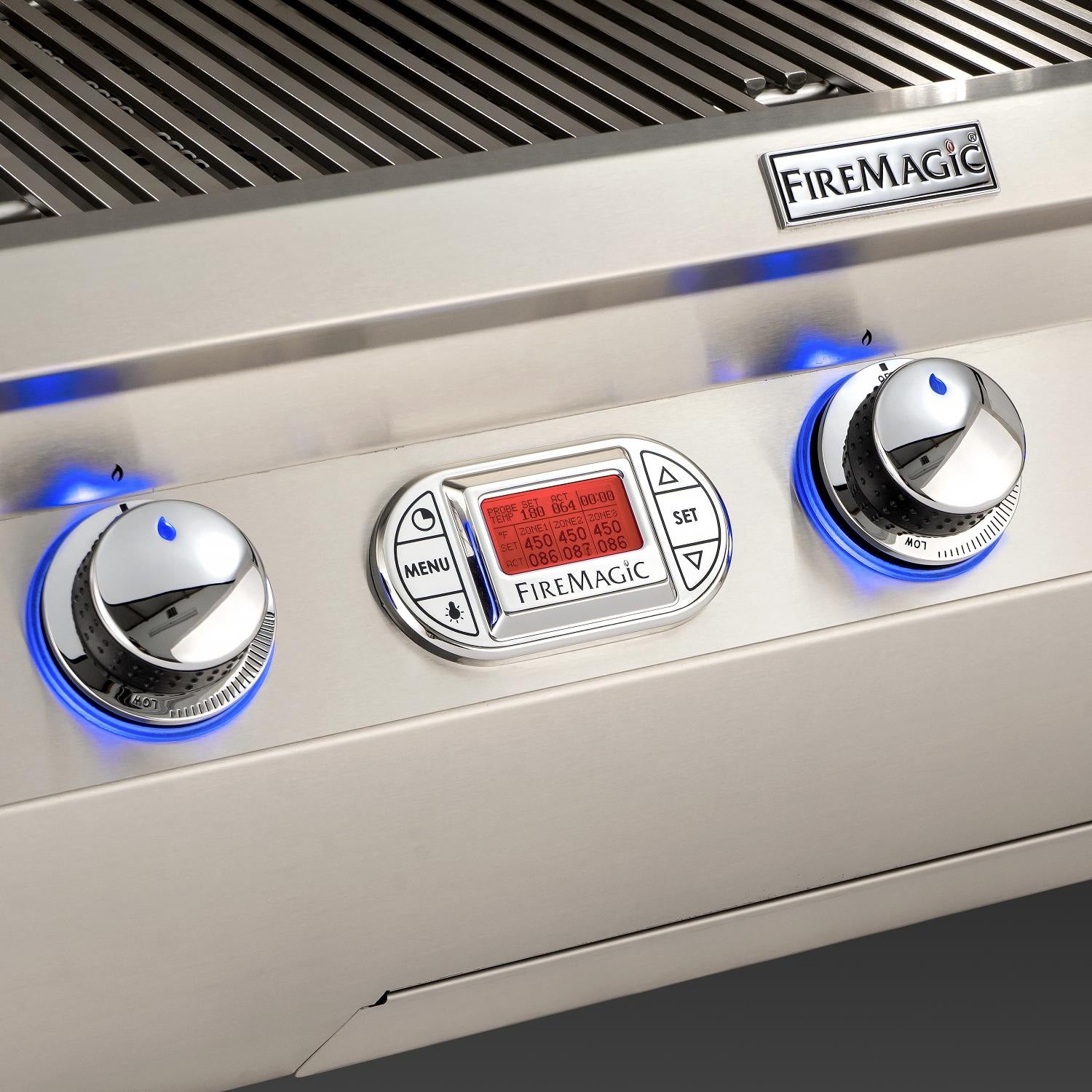

  • Illuminated chromed digital thermometer with meat probe, timer, and alarm settings for precise grilling.
  • All 304 stainless steel trapezoid cooking grids provide more optimal cooking surface for even heat and great searing.
  • 16-gauge stainless steel, flavor grids are engineered for durability, even heat distribution, and reduced flare-ups.
  • Heat zone separators between each burner, flavor grid, and cooking grid allow cooking an assortment of foods at different temperatures simultaneously, and to provide better indirect cooking.
  • Hot surface electronic ignition provides reliable lighting for every meal. Requires 120V AC power supply.

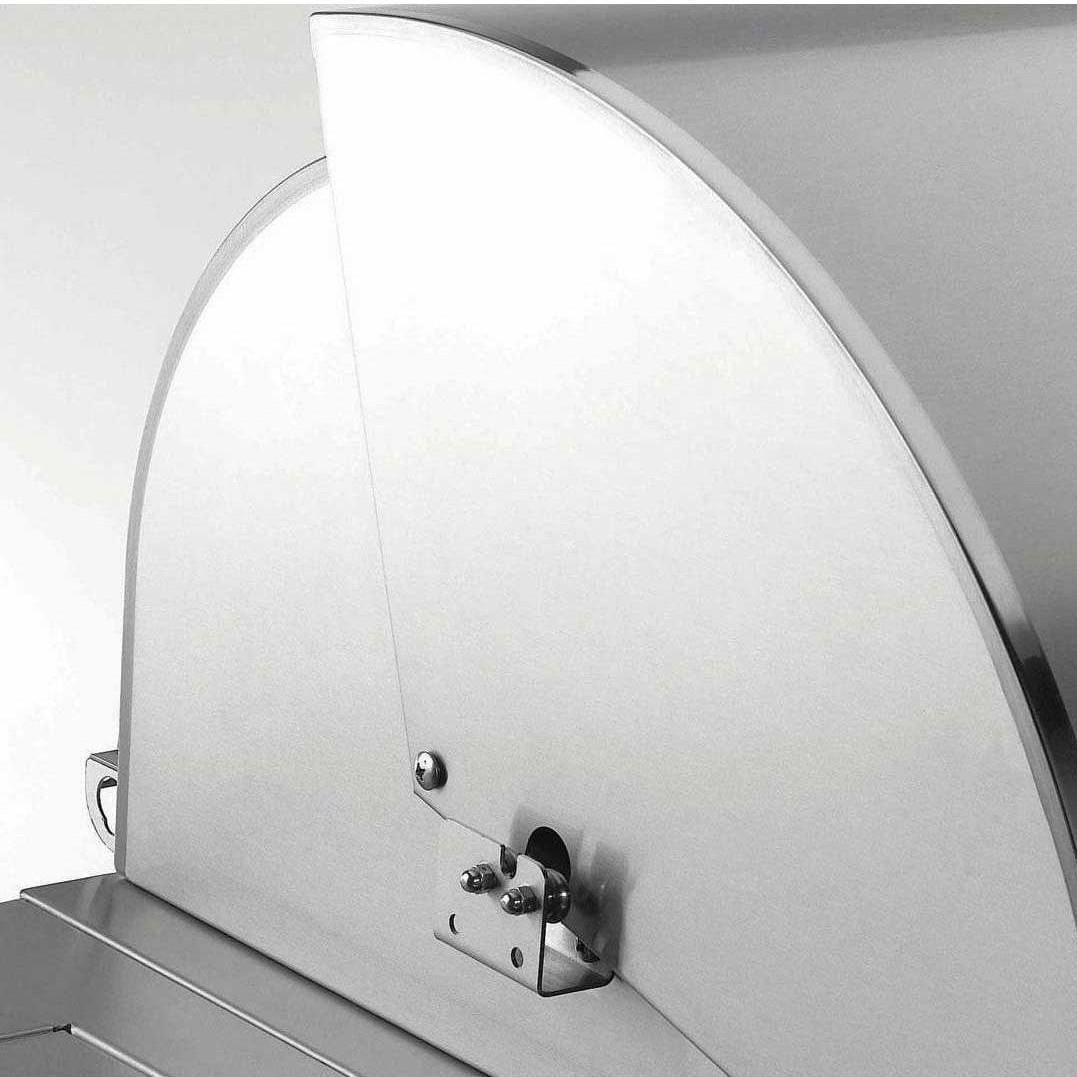

  • Double wall, seamless oven hood with featherlight easy lift, rounded for best convection cooking.

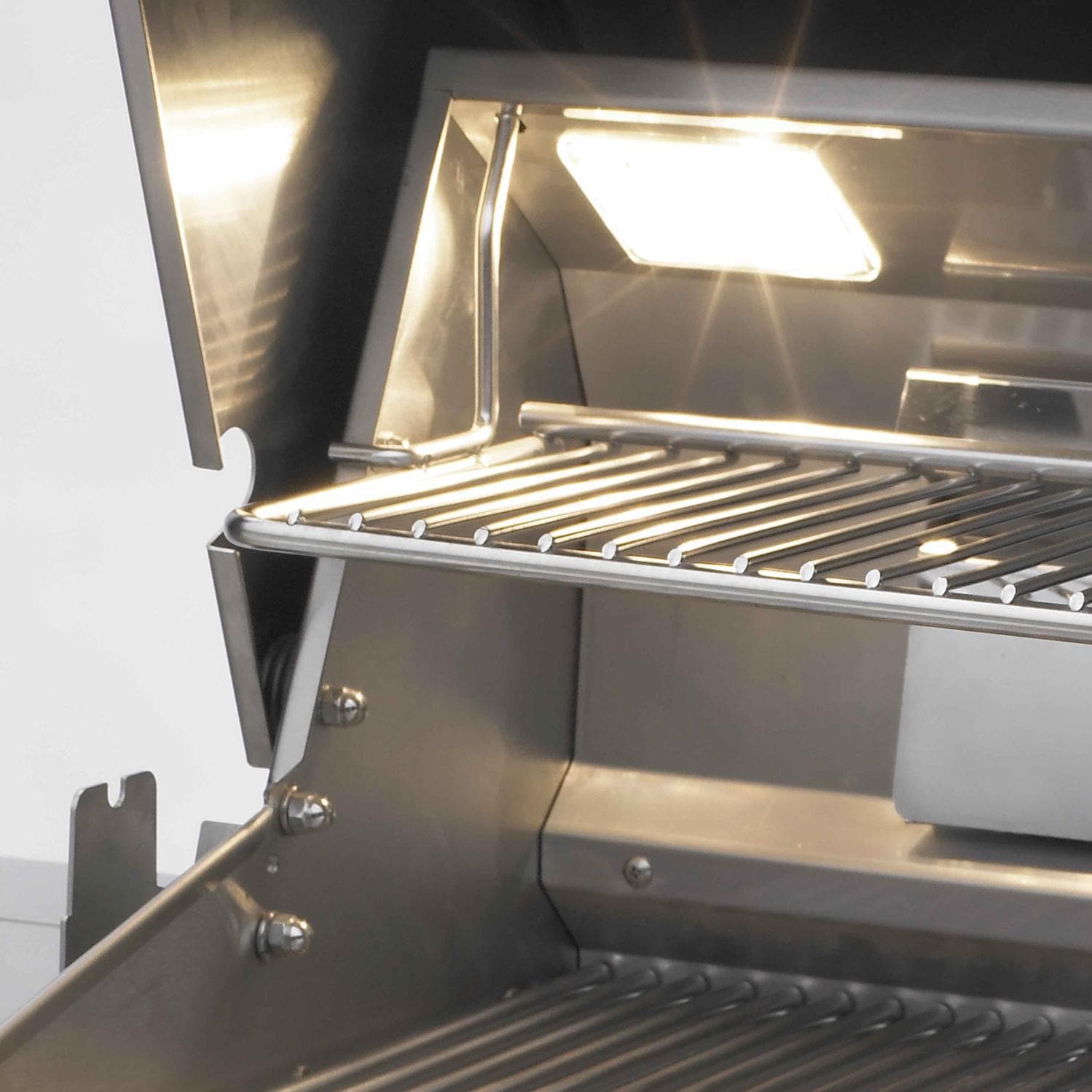

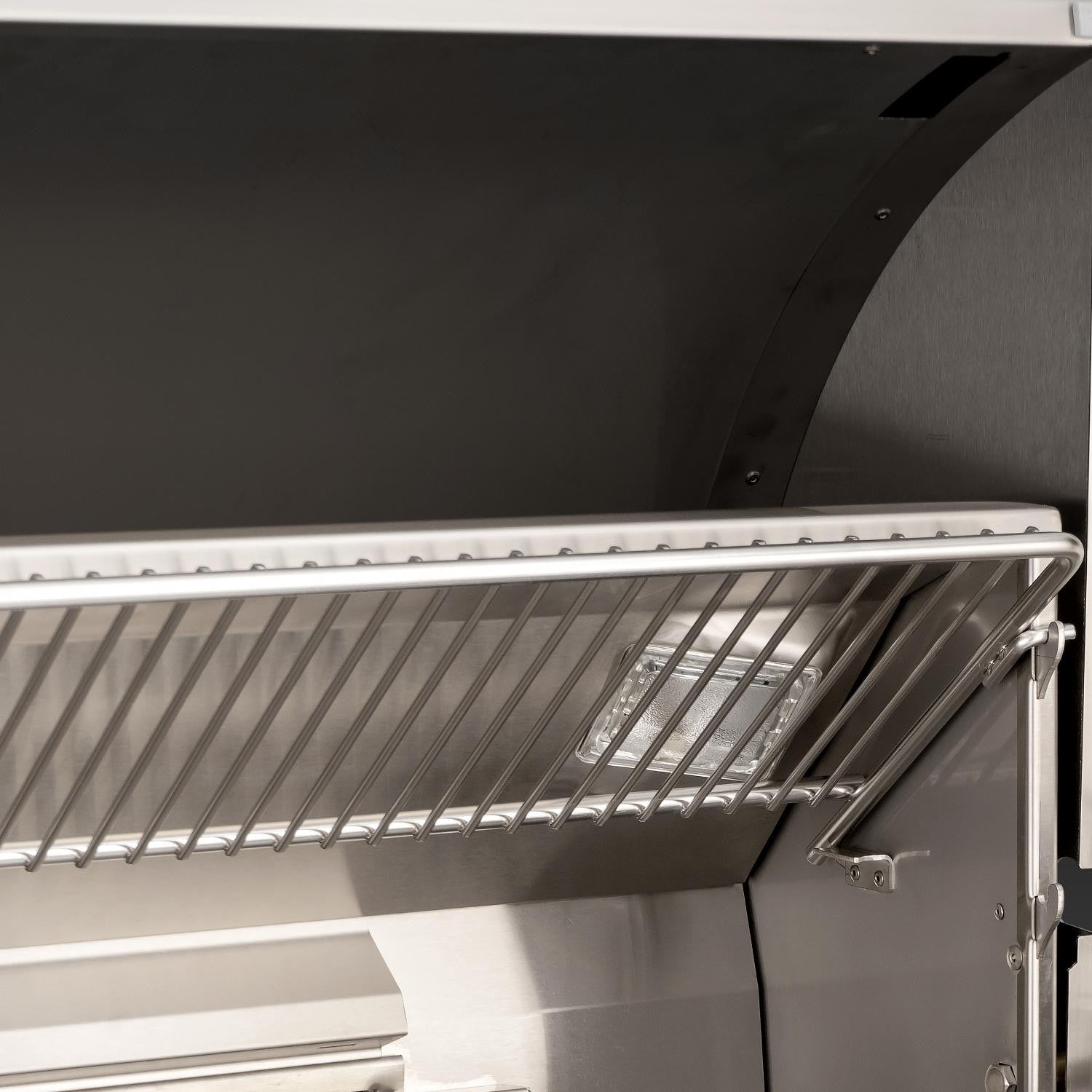

  • Angled interior halogen lights make evening grilling a breeze.
  • Recessed Quantum backburner made of stainless steel foam uses less BTUs to generate efficient high heat for rotisserie cooking. Polished stainless steel cover included for protection.
Dimensions 34.375" W x 27" H x  30.5" D
Cutout Dimension  31.25" W x 23.5" D x 12" H
Class Luxury
Fuel Type Propane
Collection Echelon Diamond
Configuration Built-In
Exterior Material Stainless Steel
Exterior Stainless Grade 304 Stainless Steel
Primary Color Stainless Steel
Number Of Main Burners 3 Burners
Grilling Surface BTUs 75000
Infrared Main Burner One Infrared
Main Burner Material 304 Cast Stainless Steel + Ceramic Infrared
Flame Tamer Material Stainless Steel
Cooking Grate Material Stainless Steel
Cooking Grid Dimensions 30 X 22"
Main Grilling Area 660 Sq. Inches
Secondary Grilling Area 240 Sq. Inches
Total Grilling Area 900 Sq. Inches
Burger Count 24
WiFi/Bluetooth Enabled None
Rotisserie Burner BTUs 11000
Rotisserie Kit Included
Heat Zone Separators Yes
Ignition Type Hot Surface
Flash Tubes Yes
Grill Lights Internal / External
Spring Assisted Hood Yes
Thermometer Digital
Includes Smoker Box No
Hose Included Yes
Made In USA Yes
Commercial-Grade Multi-User No
Size 30"


Manufacturer Downloads

Instructions Manual
Cut-Out Spec Sheet
QuickStart Guide



About Firemagic:

  • Fire Magic Grills and products have been proudly crafted in the USA since 1937.
  • Their true width cooking grids offer some of the largest cooking areas by square inch in their size classes, so you can cook more food at once.
  • Get a great sear every time with their stainless-steel diamond sear cooking grids, which provide more surface contact for fast and even grilling.
  • You can create the perfect outdoor area with Fire Magic’s extensive line of grills and matching outdoor kitchen equipment.
